AXIAL SCX10 II DEADBOLT 1/10 4WD RTR

Time to rock the rocks with attitude! We've combined the rugged good looks of the Deadbolt™ with the exceptional handling of the track-ready SCX10™ II chassis, giving you a rig that's as charisma as it is competent. The Deadbolt™ bodywork is now coated in an olive drab paint scheme while still retaining the original features you've come to love; narrow stance, bulging hood, realistic driver figure and exterior cage complete with light bar (LED lights sold separately). The final look is a licensed CRC front bumper and Method Hole wheels wrapped in Nitto Trail Grappler tires.

Characteristic

Chassis: Scaled steel C-channel side rails with adjustable body mount, adjustable bumper mounts with sway bar mounting points, mounting points for optional 2-speed and servo winch, adjustable chassis mounted servo system
Transmission : Full time 4WD locked transmission with WB8 HD Wild Boar drive-shafts with updated design with a larger diameter cross pin (2x11mm) with an M4 screw shaft (2mm hex drive) for added strength, knurled slider central floats between each end with additional material that reduces flexing and fatigue
Transmission : AX10 three gear design, metal motor plate, adjustable ratio for high speed or competition level drag speed, 20T metal drive gear, plastic idler gear and bottom gear, metal gear set available optional, AX31585, better mounting points at the base of the transmission - no more stripped screws
Slipper Clutch - Double pad design for increased surface area, 32P gear pitch for high torque applications

Motor : 35 turns, brushes, waterproof , built-in cooling fan

Radio : Tactic TTX200 2-channel transmitter with TR325 3-channel receiver,

Receiver Box – Waterproof with separate silicone seals for antenna, servo cables and gasket for receiver box lid, receiver box located on side plates for easy access and low center of gravity

ESC : AE-5 waterproof , switchable between LiPo or NiMH with a simple jumper-jumper 1 provides a simple plug and play choice between LiPo or NiMH, jumper 2 switches Drag brake settings, waterproof design with connector Star plug battery.

Spur Gear: 56T 32-pitch, plastic construction Pinion 15T 32-pitch, steel construction
Battery Tray : Easy access front mount, adjustable, holds up to 1.2 x 1.7 x 5.8" (32x44x147mm) 3S, 5000mAh batteries
Front and rear axles : hardened steel
AR44 High Pinion Axle - Hypoid cut CNC metal gears, optimized gear ratio to reduce torque twist, optional gear options, one piece axle housing, increased clearance, larger load bearings for durability, 8° pivot axle eliminates tire wear, single piece axle housing, one piece metal locker, adjustments in 10° increments for knuckle carriers and straight axle adapters, optimized gear ratio; 3.75 compared to 2.92 previously, for less twist torque
Bodywork : Trimmed and painted olive, dash, plastic cage with driver figure roll bar with light bar (lights not included)
Wheels : Method Hole Wheels, 1.02" (26mm) Wide Molded Compound, 2.12" (53.9mm) Construction, Black, 12mm Hex
Tires : 1.9" Nitto Trail Grappler M/T, S30 compound with large blocks for excellent off-road grip 4.7" (119.4mm) 1.9" (48.2mm) wide
Shocks : coil, oil filled, steel springs, white, multiple mounting positions

required to function

6-cell NiMH or 2-3S LiPo

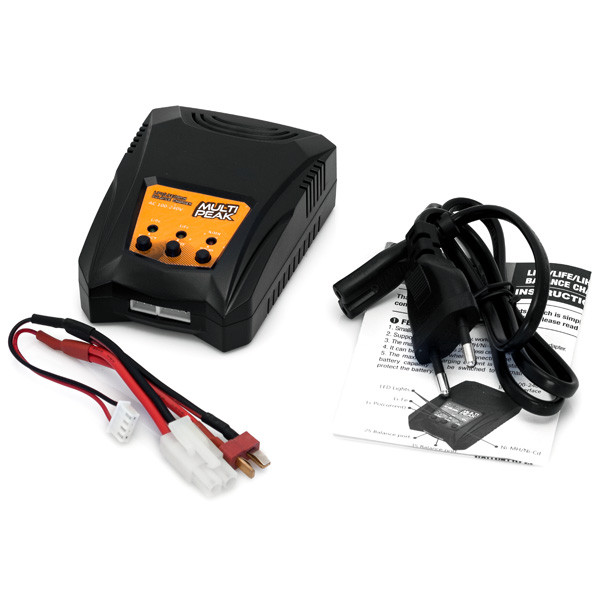

suitable charger
Basic tools

What is in the box?

(1) RTR SCX10 II Deadbolt 4WD w/Oil Filled Shocks, Wheels, Rims, Painted Body, Radio, ESC, Motor, Decals, Waterproof Receiver Box, Light Bar (Lights Not Included)
(1) User Manual

specs

Length: 18.1" (460mm)
Width: 8.8" (225mm)
Height: 229mm (9.0")
Wheelbase: 12.0" (305mm), optional link kit allows wheelbase to be adjusted to 11.4" 12.0" or 12.3" wheelbase
Ground Clearance: 2.7" (68mm)
Weight: Approximately 4.65 lbs (2.1 kg) with electronics
Optimized Gear Ratio: 3.75:1
Final Drive Ratio (FDR): 42.00, stock (33.69-54.15 with different spur/pinion gear combinations, additional spur and pinion gears must be purchased separately)
Adjustable Battery Tray Dimensions: 5.75 x 1.2" (147 x 32mm)
Length: 444mm (17.5")
Width: 6.25" (159mm)
Height: 6.4" (162mm) from underbody to top of roll cage 3.3" (84mm) from underbody to top of driver's door
